Overview

The IBM 2076 is the hardware component of the IBM Storwize V7000 Gen2 disk system. The Storwize V7000 is a highly scalable virtualized, enterprise-class, flash-optimized storage system designed to consolidate workloads into a single system for ease of management, reduced costs, superior performance, and high availability.

The IBM Storwize V7000 Gen2 is available in the following models:
• 2076-524 Storwize V7000 SFF Control Enclosure Model 524
• 2076-12F Storwize V7000 LFF Expansion Enclosure Model 12F
• 2076-24F Storwize V7000 SFF Expansion Enclosure Model 24F
• 2076-92F Storwize V7000 HD LFF Expansion Enclosure Model 92F

All the IBM Storwize V7000 Control Enclosures and IBM Storwize V7000 Expansion Enclosures can be accommodate SAS, Nearline SAS, and SSD disk drives. All drives are dual-port and hot-swappable. All drives can be intermixed within the enclosure they are designed for. LFF and SFF expansion enclosures can be intermixed behind the SFF control enclosure.

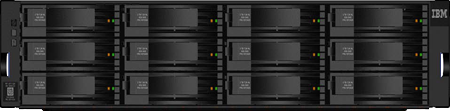

12x 3.5-inch Enclosures: 2076-12F

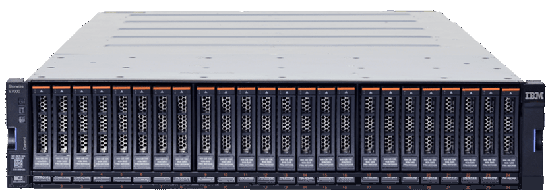

24x 2.5-inch Enclosures: 2076-524 and 2076-24F

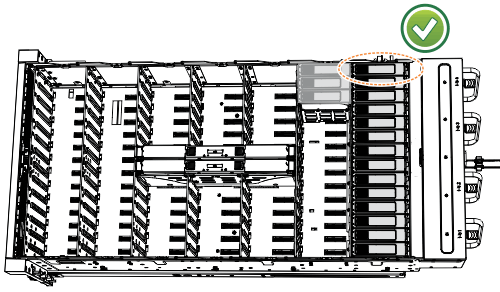

92x 3.5-inch (LFF) High Density Expansion Enclosure: 2076-92F

Call for price and availibility of the below IBM 2076-92F Features:

600GB 15K 3.5 Inch HDD        2076      92F          AH70

900GB 15K 3.5 Inch HDD        2076      92F          AH71

1.2TB 10K 3.5 Inch HDD        2076      92F          AH73

1.8TB 10K 3.5 Inch HDD        2076      92F          AH74

2.4TB 10K 3.5 Inch HDD        2076      92F          AH75

6TB 7.2K 3.5 Inch NL HDD      2076      92F          AH77

8TB 7.2K 3.5 Inch NL HDD      2076      92F          AH78

10TB 7.2K 3.5 Inch NL HDD     2076      92F          AH79

1.6TB 3.5 Inch Flash Drive    2076      92F          AH7D

3.2TB 3.5 Inch Flash Drive    2076      92F          AH7E

1.92TB 3.5" Flash Drive       2076      92F          AH7J

3.84TB 3.5" Flash Drive       2076      92F          AH7K

7.68TB 3.5" Flash Drive       2076      92F          AH7L

15.36TB 3.5" Flash Drive      2076      92F          AH7M

Important IBM Storwize V7000 Gen2 Notes:
- Storwize V7000 (Gen2) Model 524 systems can be added into existing Storwize V7000 clustered systems that include previous generation Storwize V7000 (Gen1) systems. All systems within a cluster must be using the same version of Storwize V7000 software.

- The V7000 (Gen2) Model 524 control enclosure supports only the attachment of V7000 (Gen2) Model 12F, 24F, and 92F expansion enclosures and HDDs. Previous generation Storwize V7000 (Gen1) expansion enclosures (Models 212 and 224) and HDD's are not supported with the V7000 (Gen2) Model 524 control enclosure.

- V7000 (Gen2) Model 12F, 24F, and 92F expansion enclosures are only supported for attachment to V7000 (Gen2) Models 524 and 624 control enclosures. Previous generation Storwize V7000 (Gen1) control enclosures (Models 112, 124, 312, and 324) do not support the attachment of V7000 (Gen2) Model 12F,24F, and 92F expansion enclosures.

- Disk Drives in the IBM Storwize V7000 Gen2 Controllers and expansion enclosures must have the appropiate Drive Vendor ID ( e.g. IBM-D050 ) and the approriate FRU Part Number displayed in the Vital Product Data (VPD) Drive Properties details in order to be supported. All of the IBM drives listed on this page meet these requirements for full support on the IBM Branded V7000 Gen2).

Price and Availability:
In stock drives can be ordered by Capacity/Interface/Form-Factor or by the IBM 2076-xxx Feature Codes using the left sidebar. The corresponding IBM replacement Part CRUs / FRU's can be found and ordered in the right sidebar. In stock drives ship within twenty four (24) hours when ordered online. IBM V7000 Gen1 disk drives, not currently in stock, can be ordered and delivered within three business days.

Contact us if you need more information or integration assistance for your IBM Storwize V7000 Controllers or Expansion units.

Order Online, Call 888-878-4167 or submit a "Get Quote" for quantity discounts and availibily.
