Overview

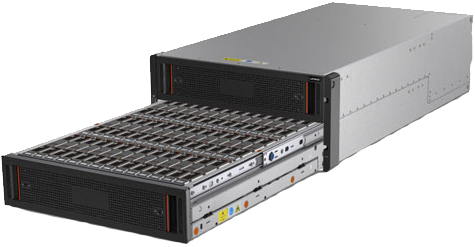

The Lenovo D3284 External High Density Drive Expansion Enclosures can be scaled to multi PetaBytes (PB) for capacity optimized configurations. The Lenovo D3284 expansion enclosure Machine Type 6413 allows daisy chaining with D1212 and D1224 expansion enclosures. Up to two D3284 and two D1212 or one D1224 drive enclosures is supported in a single chain. The D3284 expansion enclosures are universal enclosures that can be used with Lenovo Servers as direct attach storage (DAS) or as expansion for the Lenovo ThinkSystem DS4200 and DS6200 storage systems.

The D3284 drive enclosure supports up to 84 x 3.5-inch hot-swap drives. The supported drive types are NL SAS HDDs and SAS SSDs. NL-SAS HDD fourteen packs (14-pack) are available here to meet new capacity expansion configuration requirements. Some 14-pack capacities are on allocation and may require a seven (7) day lead time for shipment.

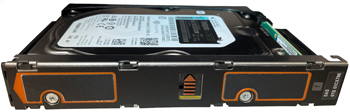

Lenovo Storage D3284 High Density Hot Swap NL-SAS HDD (14-pack available)

The following Lenovo rules apply when configurating drives in a Lenovo D3284 Machine Type 6413.

- The drives must be installed in rows. Each row contains 14 drive bays, and there are six rows in the enclosure (three rows per drawer). The drives must be installed in a quantity of 14 per row. That is, all drive bays in the row should be populated.

- Intermixing HDDs and SSDs is supported within the drawer/enclosure and within the first row in the top drawer, but not within other rows. If SSDs and HDDs are intermixed in the first row in the top drawer, up to four SSDs can be installed, and the remaining slots must be populated with HDDs.

Price and Availability:
In stock drives can be ordered by Capacity or by the Lenovo Machine Type 6413 Option Part Number using the left sidebar. The corresponding Lenovo FRU or Feature Code can be found and ordered in the right sidebar. In stock drives ship within twenty four (24) hours when ordered online. Lenovo D3284 disk drives, not currently in stock, can be ordered and delivered within five business days. Call or email for price and availibilty of Lenovo D3284 SSDs.

Contact us if you need more information or integration assistance for your Lenovo Storage D3284 External High Density Expansion.

Order Online, Call 888-878-4167, Email, or submit a "Get Quote" for quantity discounts and availibily.
